Intellitron WP-6602 Multi-Port RF Feedthrough Panel
MSRP:
$104.95Product description
This weather-resistant, windowsill-mounted panel provides a clean and reliable solution for routing cables and ground connections from inside to outside your home without the need to drill through walls. Its ingenious design makes it an ideal choice for safely routing a variety of cables, including RF coaxial cables, ladder line, long-wire antennas, and power or remote-control lines. Measuring 44 inches in length, it’s easy to cut it down to size for your particular window.
The panel is constructed from a durable, paintable 1/2-inch polypropylene sheet, ensuring it can withstand the elements. All RF connectors are Teflon-insulated, while the wire-line insulators are made from ceramic, providing superior performance and insulation. Each model also features an attractive brushed stainless-steel interface for station ground routing and bonding, ensuring all your connections are safe and secure.
UPC Code: 810106911830
- No-Drill Installation: Provides a clean and non-invasive way to route cables through a windowsill, eliminating the need to drill holes in your walls.
- Durable Construction: Made from a weather-resistant polypropylene sheet with Teflon-insulated RF connectors and ceramic insulators.
- Integrated Grounding: Features a brushed stainless-steel interface for easy station ground routing and bonding.
- Versatile Connectivity: Available in multiple configurations to suit various needs:
- WP-6601: Includes six (6) SO-239 feedthroughs and ground studs.

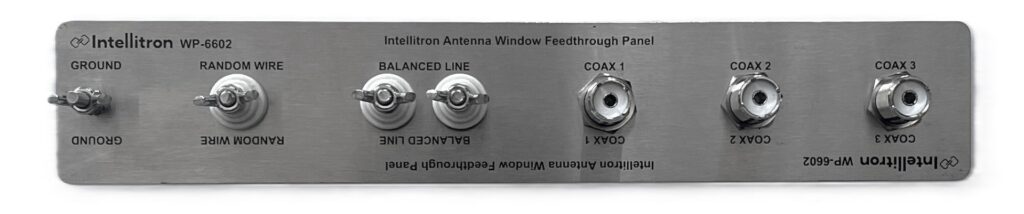

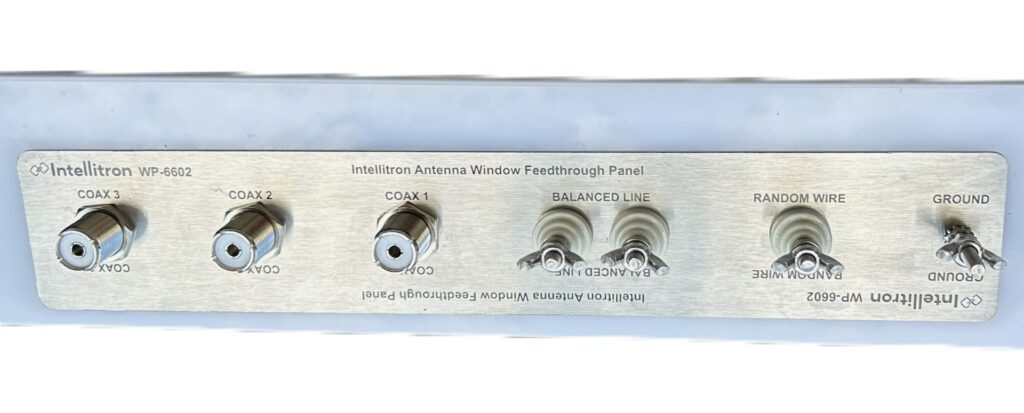

- WP-6602: Includes three (3) SO-239s, one (1) ceramic ladder-line, and one (1) ceramic long-wire feedthrough, plus ground studs.
- WP-6603: Includes four (4) SO-239s, one (1) N-connector, one (1) F-connector, one (1) pair of 5-way binding posts (32VAC / 50VDC @ 15A), plus an adjustable passthrough for cables up to 1-1/4” OD, and ground studs.
