Intellitron MAG-1050 Antenna Artificial Ground
MSRP:
$24.95Product description

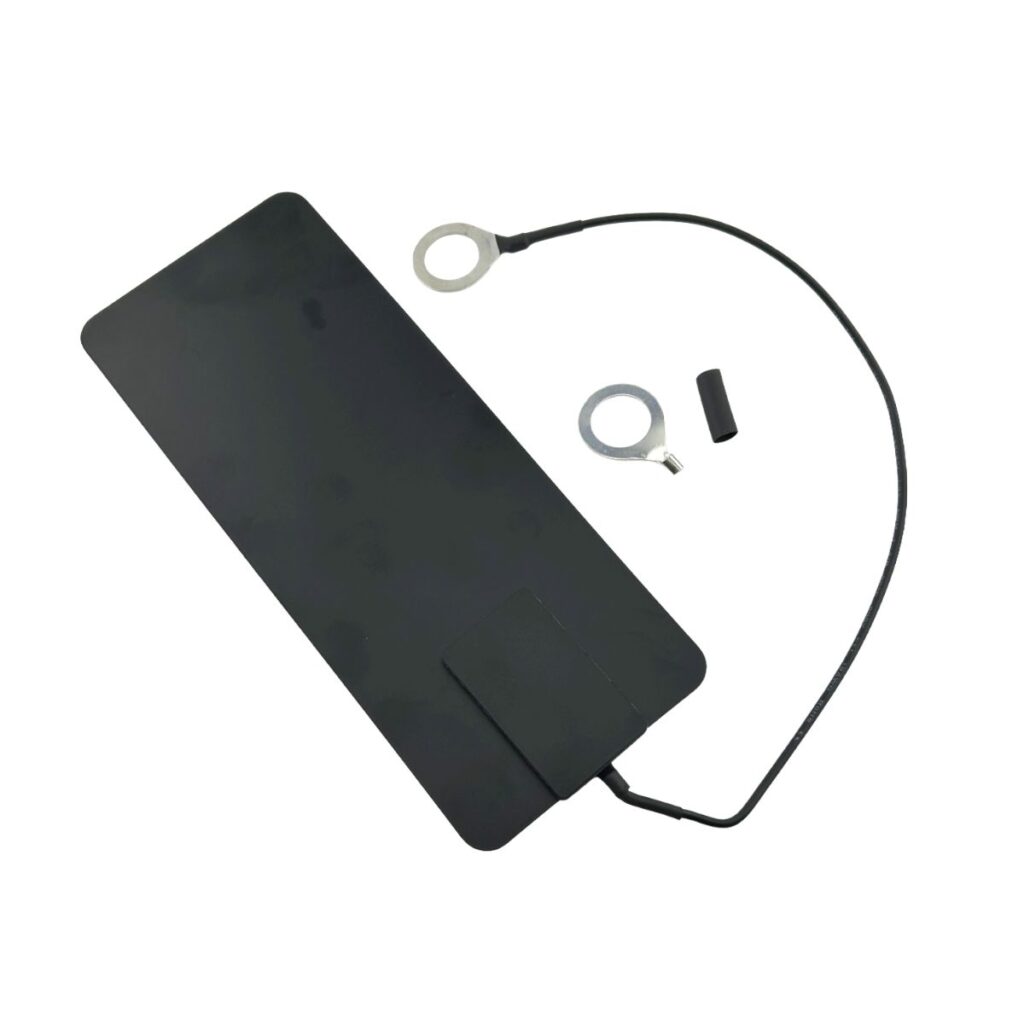

The Intellitron MAG-1050 is a unique and convenient solution for providing an artificial ground for HF antennas on a vehicle. This device attaches magnetically to a vehicle’s metal surface, creating a reliable ground via capacitive coupling without the need for hardwired electrical contact. Its non-permanent design allows for easy installation and removal without causing any damage to your vehicle’s body.
Compact and secure, the MAG-1050 measures 80 x 195mm (3.15 x 7.68 inches) and is designed to stay firmly in place at speeds of up to 110 km/h (68.35 mph). It provides wide frequency support, working effectively in the 7–30 MHz range and extending to 7–50 MHz with a short connection cable. For lower frequency operation, two units can be used together to enable use in the 3–5 MHz range.
UPC Code: 810106911786
- Non-Permanent Grounding: Provides a ground via capacitive coupling when magnetically attached to a vehicle, requiring no hardwiring or drilling.
- Wide Frequency Support: Operates in the 7–30 MHz range (and 7–50 MHz with a short connection cable).
- Extended Low-Frequency Operation: Use of two units allows operation in the 3–5 MHz range.
- Magnetic Attachment: Easy to install and remove without damaging the vehicle’s paint.
- Compact and Secure: Measures 80 x 195mm (3.15 x 7.68 inches) and remains secure at speeds up to 110 km/h.
